Your Position: Home > Products > Ceramic Fiber
ceramic fiber heating module
ceramic fiber insulation modules
ceramic fiber module density
ceramic fiber module manufacturer process
ceramic fiber heating module
ceramic fiber insulation modules
ceramic fiber module density
ceramic fiber module manufacturer process

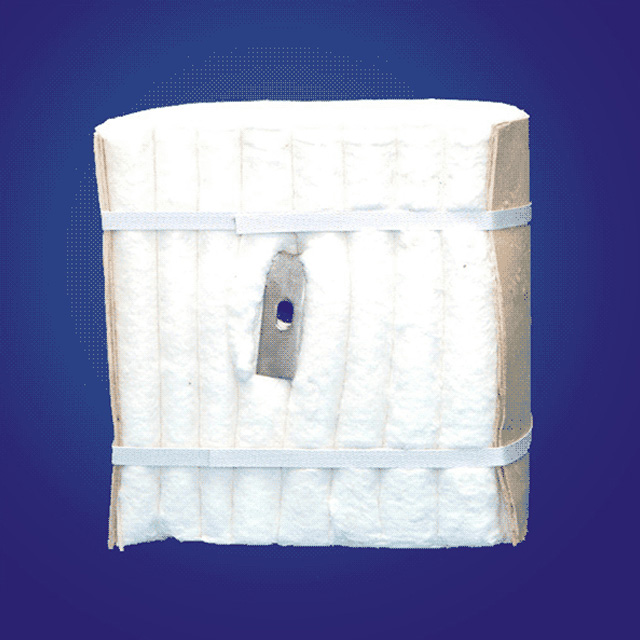

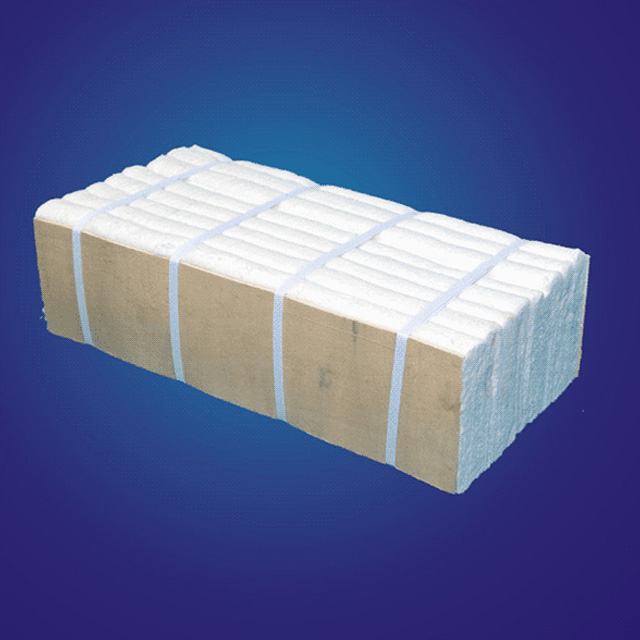

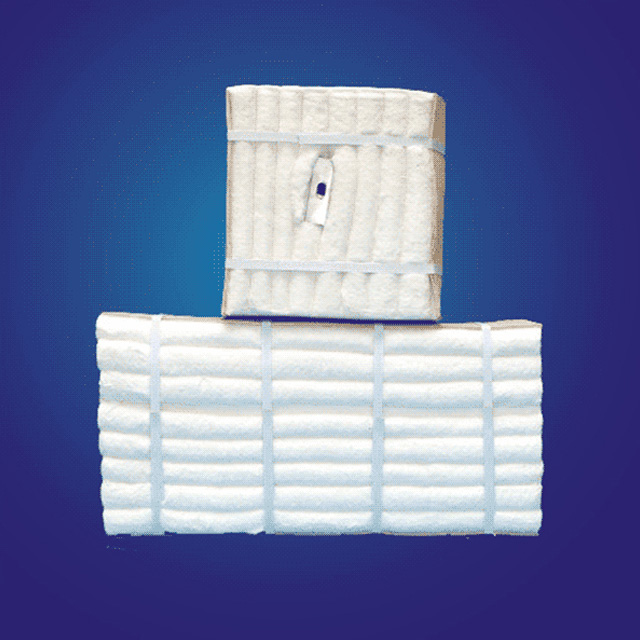

Ceramic Fiber Modules

Density: 160-260 kg/m³ (13-16 lb/ft³)
Raw materials: Ceramic Fiber Bulk
Thickness: 150-300 mm
Asbestos: 100% Non Asbestos
Function: Insulation
Chat Now
Send Email
PDF Download
Share With:
Introduction
Parameters
Application
Packaging
Related Products

Introduction

Ceramic Fiber Modules are made from the corresponding ceramic fiber material acupuncture blanket processed in dedicated machines according to fiber component structure and size. Ceramic fiber folded modules is directly fixed in industrial furnaces shell plate by various anchorage.
Faster temperature cycling
Lower heat storage
Lower fuel costs, energy savings
Increased productivity
Low heat loss
Lower installed cost, easy to install
Easier repairs, requires less maintenance
Resistance to thermal shock

Technical Parameters

Type STD Module HP Module HZ Module
Classified Temperature 1260℃
(2300℉)		 1260℃
(2300℉)		 1430℃
(2606℉)
Working Temperature 1050℃
(1922℉)		 1100℃
(2012℉)		 1350℃
(2462℉)
Density(kg/m3) 160-260
（13-16 lb/ft3）
Linear Shrinkage 24hrs ≤2.5
1000℃/2012℉		 ≤2.5
1100℃/2012℉		 ≤3.5
1350℃/2462℉
Thermal Conductivity(W/m.k) 400℃
(752℉)		 0.09 0.101 0.118
500℃
(930℉)		 0.119 0.12 0.149
  600℃
(1112℉)		 0.152 0.175 0.195
Chemical     Composition % Al2O3 ≥44 ≥45 ≥34
SiO2 ≥52 ≥54 ≥50
ZrO2     ≥15
Fe2O3 ≤1.0 ≤0.5 ≤0.5
K2O+Na2O ≤1.0 ≤0.2 ≤0.2
Size 300/600*300*200-350 mm
Packing plastic bag together with Carton or Pallet

The application of ceramic fiber modules

Widely used in industrial furnaces to provide excellent insulation performance and maintain high temperatures, ensuring efficient heat treatment processes.
Widely used in industrial furnaces to provide excellent insulation performance and maintain high temperatures, ensuring efficient heat treatment processes.
Used for insulation of high-temperature reactors and pipelines, preventing heat loss and ensuring safe operation.
Used for insulation of high-temperature reactors and pipelines, preventing heat loss and ensuring safe operation.
Used for power generation facilities to insulate turbines and boilers, improve energy efficiency, and reduce maintenance costs.
Used for power generation facilities to insulate turbines and boilers, improve energy efficiency, and reduce maintenance costs.

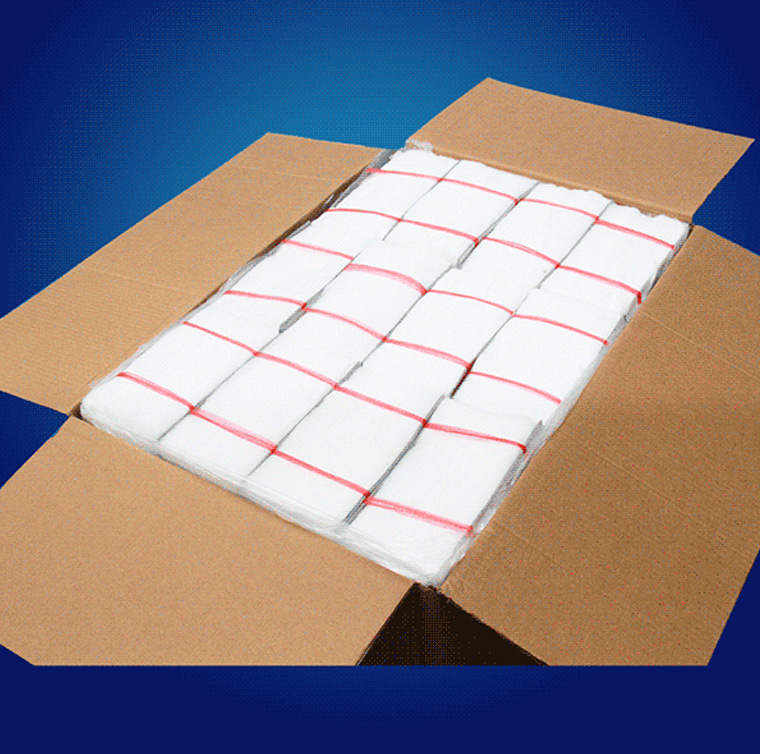

Packaging & Transportation

Fill Out The Enquiry Form And We Will Contact You Shortly

Related Products

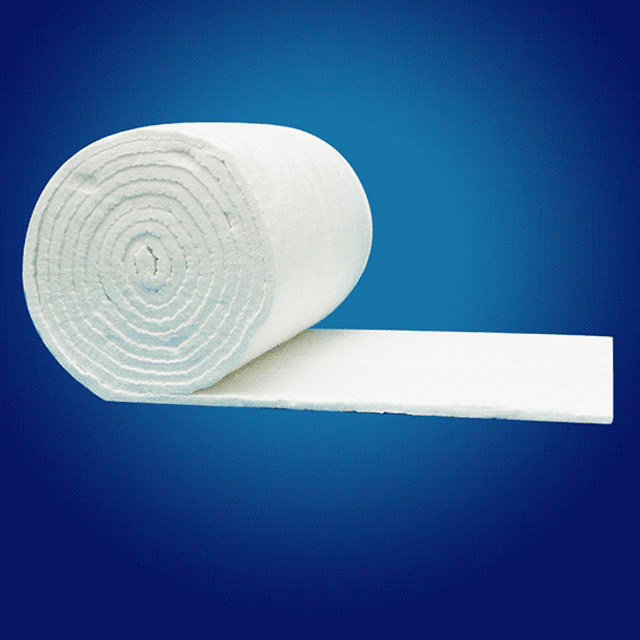

Insulation ceramic fiber blanket

Ceramic Fiber Blanket

Density: 96/128/160 kg/m³（6/8/10 lb/ft³）
Raw materials: Spuned Ceramic Fiber Bulk
Thickness: 10-50mm
Asbestos: 100% Non Asbestos
View More >>
Chat Now >>
Ceramic Fiber Paper

Ceramic Fiber Paper

Density: 200-250 kg/m³ (13-16 lb/ft³)
Raw materials: Ceramic Fiber Bulk
Thickness: 0.5-6 mm
Asbestos: 100% Non Asbestos
View More >>
Chat Now >>
Polycrystalline Mullite Fiberboard

1600 1700 1800 1900 Polycrystalline Mullite Fiberboard(Blanket)

Density: 260-320 kg/m³ (16-20 lb/ft³)
Raw materials: Aluminum Oxide, Silicon Dioxide
Thickness: 10mm-50 mm
Asbestos: 100% Non Asbestos
View More >>
Chat Now >>
Ceramic Fiber Board

Ceramic Fiber Board

Density: 260-320 kg/m³ (16-20 lb/ft³)
Raw materials: Spun ceramic fiber bulk
Thickness: 10mm, 20-50 mm
Asbestos: 100% Non Asbestos
View More >>
Chat Now >>
Ceramic Fiber Board Alternative

Ceramic Fiber Board Alternative

Raw materials: Rare Earth Cotton
Size: 1000*500*50; 300*600*50; 300*600*60mm
Working Temp.: 600℃(1112℉)
Softness: Soft
View More >>
Chat Now >>
Ceramic Fiber Special Shaped

Ceramic Fiber Special Shaped

Raw materials: Spuned Ceramic Fiber Bulk
Asbestos: 100% Non Asbestos
Shape: Various kinds
Colour: White
View More >>
Chat Now >>
Ceramic Fiber Fabric

Ceramic Fiber Cloth

Density: 500±15 kg/m³
Raw materials: Ceramic Fiber Bulk
Thickness: 1.5-6mm
Asbestos: 100% Non Asbestos
View More >>
Chat Now >>
Ceramic Fiber Bulk

Ceramic Fiber Bulk

Fiber diameter: 3-5 μm
Raw materials: Flint clay
Asbestos: 100% Non Asbestos
Slag ball（Φ≥0.25 mm）%: ≤15
View More >>
Chat Now >>
Ceramic fiber blanket for industrial insulation, lightweight and heat-resistant up to 2300°F (1260°C)

Ceramic Fiber Plus Blanket

Density: 96/128 kg/m³（6/8 lb/ft³）
Raw materials: Spuned Ceramic Fiber Bulk
Thickness: 10-50mm
Asbestos: 100% Non Asbestos
View More >>
Chat Now >>
Ceramic Fiber Tape

Ceramic Fiber Tape

Density: 500±15 kg/m³
Raw materials: Ceramic Fiber Bulk
Thickness: 1.6-6.4mm
Asbestos: 100% Non Asbestos
View More >>
Chat Now >>
