Rosewool Insulation Refractory Co.,Ltd.
Your Position: Home > Products > Ceramic Fiber
polycrystalline-mullite-fiberboard
polycrystalline-mullite-fiberboard
polycrystalline-mullite-fiberboard
polycrystalline-mullite-fiberboard
polycrystalline-mullite-fiberboard
polycrystalline-mullite-fiberboard

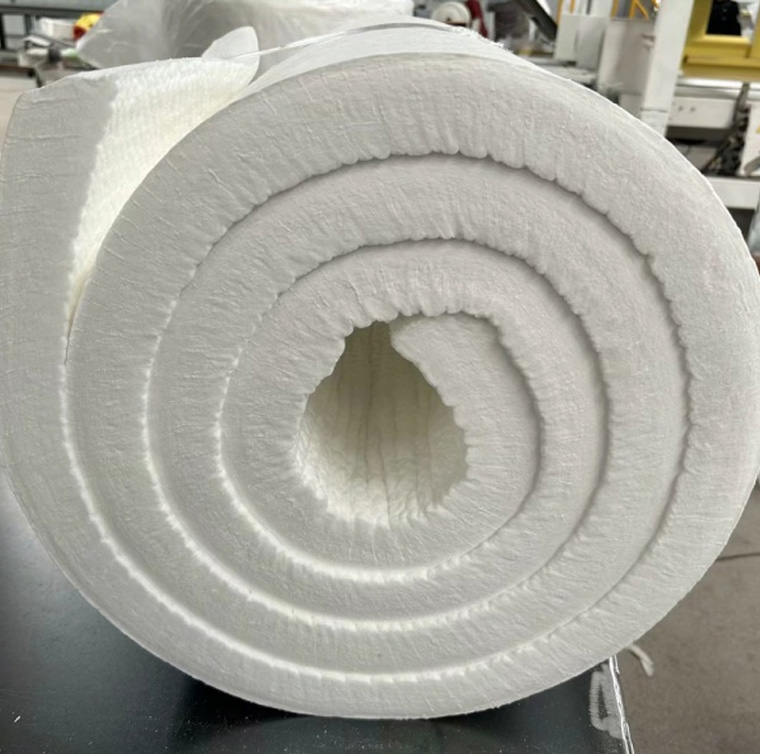

1600 1700 1800 1900 Polycrystalline Mullite Fiberboard(Blanket)

Density: 260-320 kg/m³ (16-20 lb/ft³)
Raw materials: Aluminum Oxide, Silicon Dioxide
Thickness: 10mm-50 mm
Asbestos: 100% Non Asbestos
Function: Refractory & Fireproof & Insulation
Share With:
Introduction
Parameters
Application
Packaging
Related Products

Introduction

Polycrystalline mullite fiberboard is formed by wet vacuum filtration and pressure with loose cotton and inorganic adhesive, and is calcined at high temperature according to different models; the product has the excellent characteristics of low bulk density and high strength, and is a multi-purpose product that can be used for hot surface of furnace lining to resist flame and direct impact of high-temperature airflow.

In addition to polycrystalline mullite fiberboard, we also supply polycrystalline mullite fiber blanket. Welcome to your Inquiry.

1.High temperature stability;
2.low thermal conductivity;
3.low heat capacity;
4.heat resistance;
5.corrosion resistance;
6.easy processing and cutting performance;
7.thickness and size;
8.good resistance to flame and airflow scouring;
9.easy installation and use.

Technical Parameters

Type 1600 Board 1700M Board 1800M Board 1900M Board
Classified Temp. 1600℃ 1700℃ 1800℃ 1900℃
Working Temp. 1500℃ 1600℃ 1700℃ 1750℃
Density(kg/m3) 400 350 400 765
Linear Shrinkage (%)
(8 hrs)
0.1(1500℃) 0.2(1600℃) 0.1(1700℃) 0.3(1750℃)
Thermal conductivity
(W/M.K)
At 600℃ 0.14 0.12 0.117 0.23
At 800℃ 0.17 0.15 0.189 0.27
At 1000℃ 0.24 0.18 0.228 0.31
At 1200℃
Chemical
(%)
Al2O3 64 75 78 78
Al2O3+SiO2 98 99 99.8 99.8



Application Of Ceramic Fiber Blankets

Polycrystalline mullite fiberboard can be used in fields requiring toughness, self-supporting and heat insulation, and it has good resistance to mechanical damage. Fields include: push plate kiln, ladle furnace, bell kiln, tunnel kiln, roller kiln, alumin
Polycrystalline mullite fiberboard can be used in fields requiring toughness, self-supporting and heat insulation, and it has good resistance to mechanical damage. Fields include: push plate kiln, ladle furnace, bell kiln, tunnel kiln, roller kiln, alumin
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc

Packaging & Transportation
