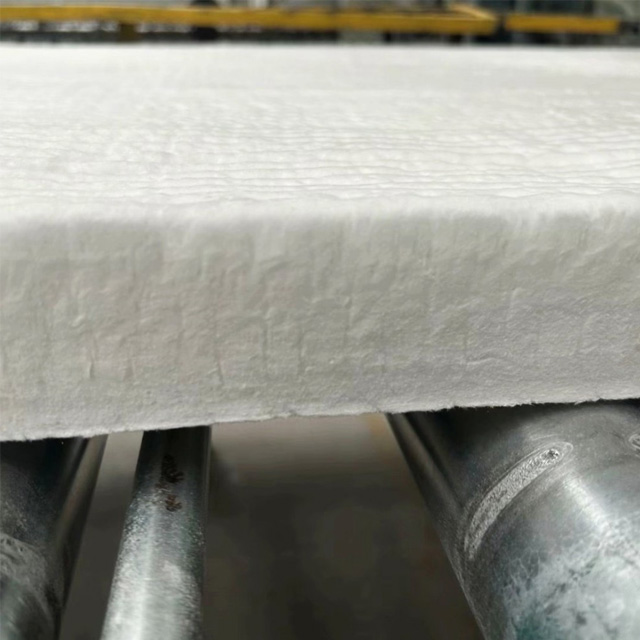

Ceramic Fiber Plus Blanket

Density: 96/128 kg/m³(6/8 lb/ft³)
Raw materials: Spuned Ceramic Fiber Bulk
Thickness: 10-50mm
Asbestos: 100% Non Asbestos
Function: Refractory & Insulation & Fireproof & Acoustic
Share With:
Introduction
Parameters
Application
Packaging
Related Products

Introduction

Ceramic fiber Plus Blanket is a new thermal insulation blanket specially designed for steam turbines launched by power plant customers. lt is made from selected natural raw materials such as burnt stones, which aremelted at high temperature, blown into fiber, solidified and molded, cut androlled. lt has high temperature resistance, lt has the characteristics of goodstability, high chemical stability, low thermal conductivity, low heat capacity,and convenient cutting and construction. Compared with traditional alumi-num silicate needle punched blankets, it has lower slag ball content, highertensile strength and better rebound rate. lt is good, has no burrs in cutting, is easy to construct, has better thermal insulation effect and longer service life.
The thermal capacity and thermalconductivity are lower than similarproducts;
The fiber diameter is uniform, andthe slag ball content is lower in products with the same density;
Stable chemical performance with-out pulverization;
The same body density product hashigher tensile strength;
High flatness, cutting construction without burrs;
Good thermal shock resistance and long service life;

Technical Parameters


Product Item 1260 Blanket Plus Blanket National Standard
Classification Temperature("C) 1260

1360 1260
Color Pure White Pure White White
Density(kg/m3) 96/128 96/128 96/128
Slag Ball Content (%)(Particle size greater than 0.212mm) ≤20 ≤5 ≤20
Thermal Conductivity(W/M.K)(Bulk density 128 Kg/m3) ≤0.153
(500°C)
≤0.135
(500°C)
≤0.156
(500°C)
Tensile Strength (Kpa)(Bulk density 128 Kg/m3) ≥34 ≥110 ≥21

Application Of Ceramic fiber Plus Blanket

Ceramic fiber Plus Blanket is a new thermal insulation blanket specially designed for steam turbines launched by power plant customers.
Ceramic fiber Plus Blanket is a new thermal insulation blanket specially designed for steam turbines launched by power plant customers.
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
External insulation such as boiler, turbine, duct and piping, precision casting shell etc
