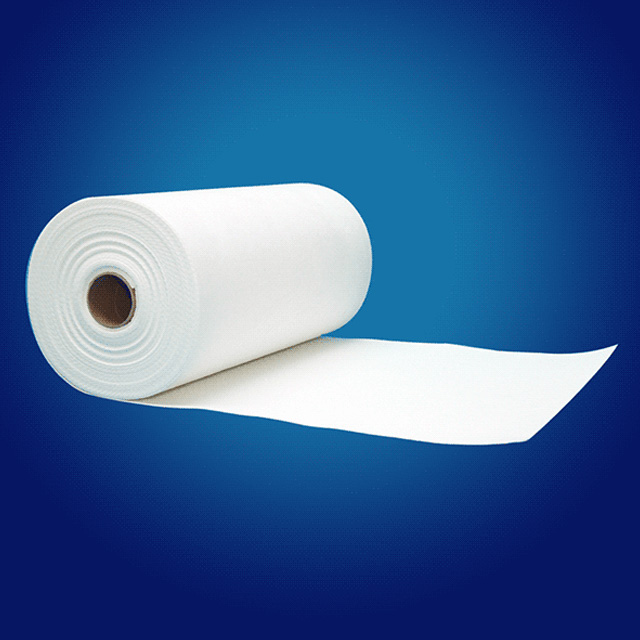

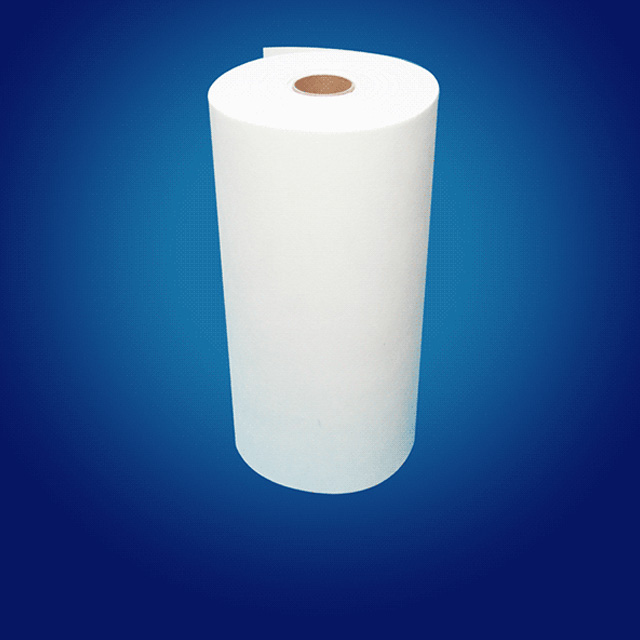

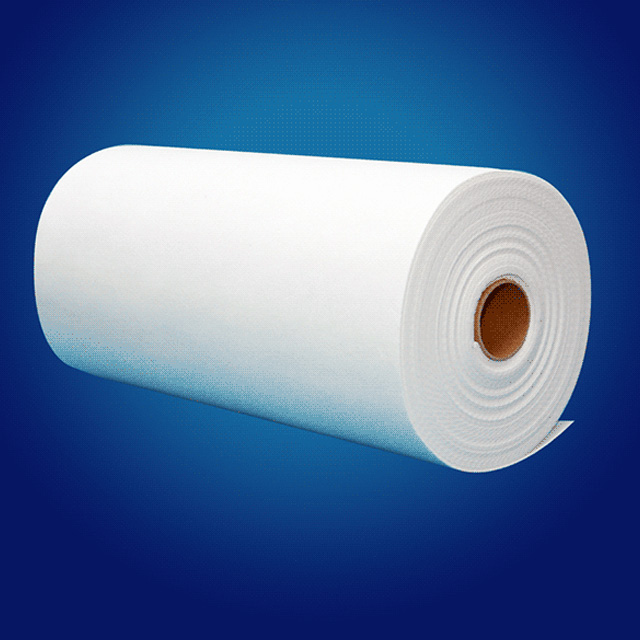

Ceramic Fiber Paper
Ceramic Fiber Paper
Ceramic Fiber Paper
Ceramic Fiber Paper
Ceramic Fiber Paper
Ceramic Fiber Paper
Ceramic Fiber Paper
Ceramic Fiber Paper

Ceramic Fiber Paper

Density: 200-250 kg/m³ (13-16 lb/ft³)
Raw materials: Ceramic Fiber Bulk
Thickness: 0.5-6 mm
Asbestos: 100% Non Asbestos
Function: Refractory & Heat Insulation & Sealing
Share With:
Introduction
Parameters
Application
Packaging
Related Products

Introduction

Blending with high quality ceramic fibers and binders, additives, ceramic fiber paper is proved to be a flexible and uniform sheet in handing heat treatment. Our paper has a highly uniform structure due to its well-controlled weight and thickness, assuring homogeneous thermal conductivity and a clean,smooth surface.
Easy to cut, wrap or form
Low thermal conductivity and heat storage
Excellent thermal shock and flame resistance
Light weight
Resilient
Excellent hydrophobic property
Good dielectric strength
Free of asbestos

Technical Parameters

Classification Temperature 1260℃
(2300℉)
1430℃
(2600℉)
Bulk density (kg/m3) 200-250
(13-16 lb/ft3)
Organic content(%) 6-8
Thermal conductivity(w/m.k)   0.075-0.085 (200℃ /392℉)
  0.115-0.121 (400℃/752℉)
   0.165-0.175 (600℃/1112℉)
Moisture Content(%) ≤1 ≤2
Chemical composition
(%)
Al2O3 45-46 38-47
SiO2 51-52 51-52
ZrO2   15-17
Size(mm) 100000*610/1220*0.5(24′/48′ width)
60000*610/1220*1(24′/48′ width)
30000*610/1220*2(24′/48′ width)
20000*610/1220*3(24′/48′ width)
15000*610/1220*4(24′/48′ width)
12000*610/1220*5(24′/48′ width)
10000*610/1220*6(24′/48′ width)

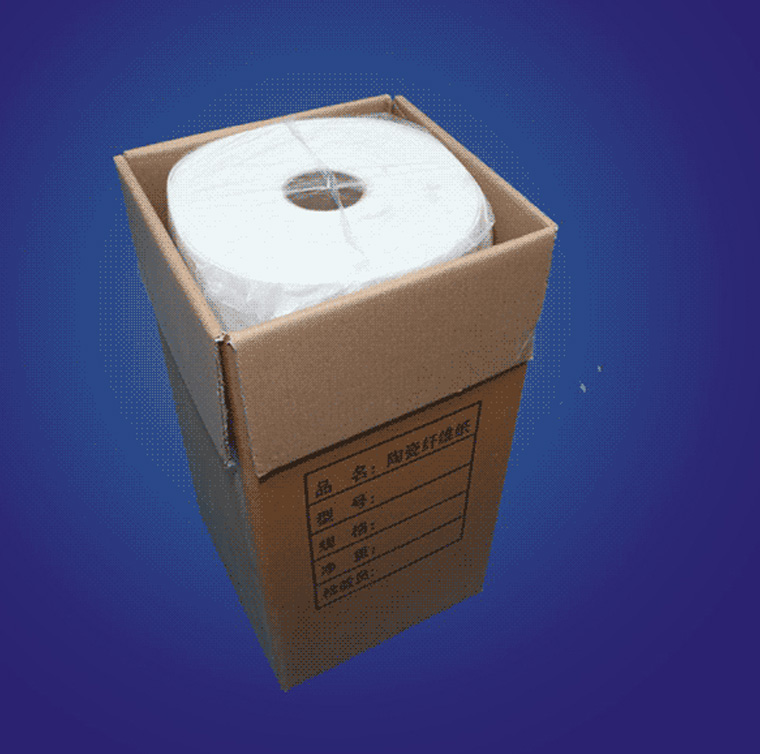

Packing By Carton with plastic bag

Application Of Ceramic Fiber Paper

Asbestos paper replacement
Asbestos paper replacement
Investment cast mold wrap insulation
Investment cast mold wrap insulation
One-time consumable insulating applications
One-time consumable insulating applications
Back-up lining for metal troughs
Back-up lining for metal troughs
Hot top lining
Hot top lining

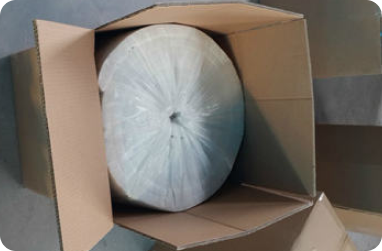

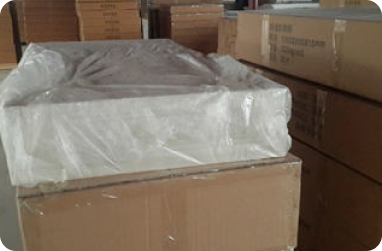

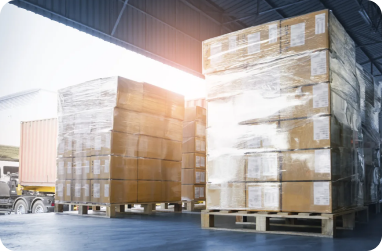

Packaging & Transportation

Fill Out The Enquiry Form And We Will Contact You Shortly

Related Products

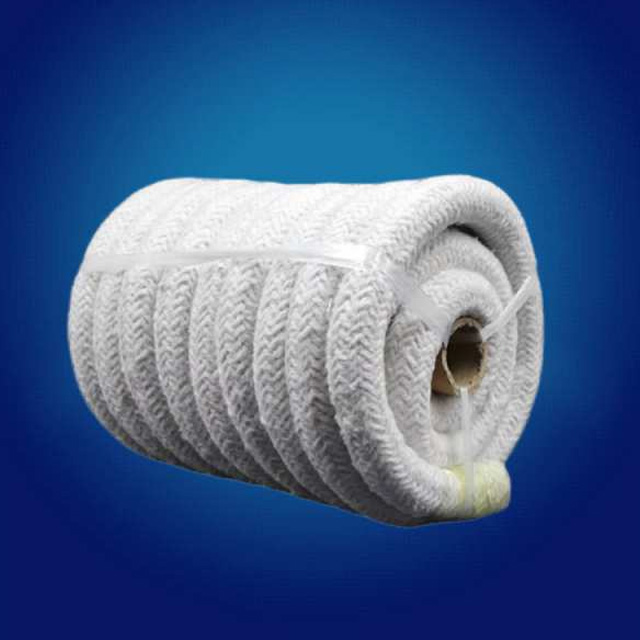

Ceramic Fiber Rope

Ceramic Fiber Rope

Density: 500±15 kg/m³
Raw materials: Ceramic Fiber Bulk
Thickness: According to Different Needs
Asbestos: 100% Non Asbestos

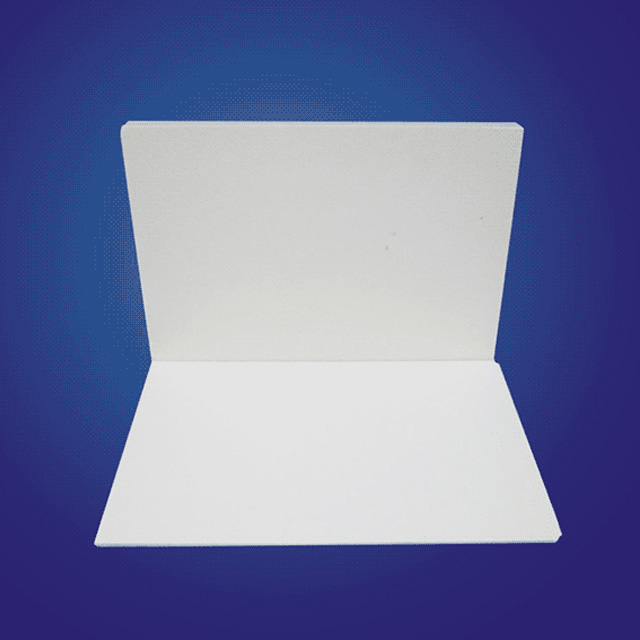

Ceramic Fiber Board

Ceramic Fiber Board

Density: 260-320 kg/m³ (16-20 lb/ft³)
Raw materials: Spun ceramic fiber bulk
Thickness: 10mm, 20-50 mm
Asbestos: 100% Non Asbestos

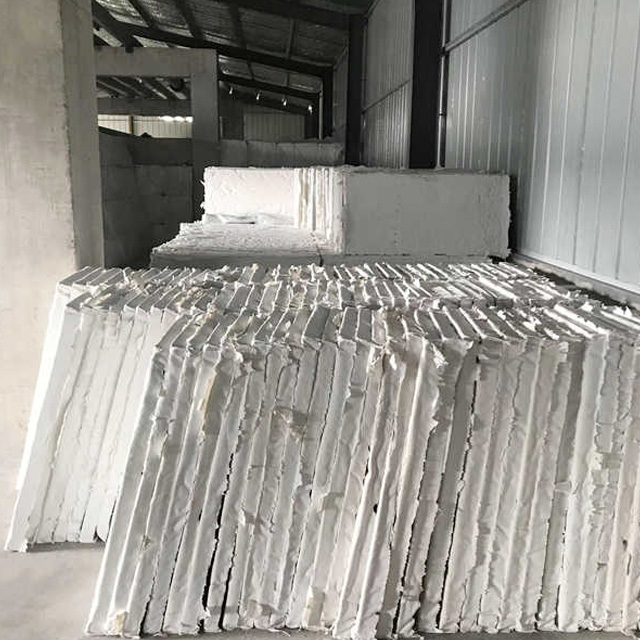

Ceramic Fiber Board Alternative

Ceramic Fiber Board Alternative

Raw materials: Rare Earth Cotton
Size: 1000*500*50; 300*600*50; 300*600*60mm
Working Temp.: 600℃(1112℉)
Softness: Soft

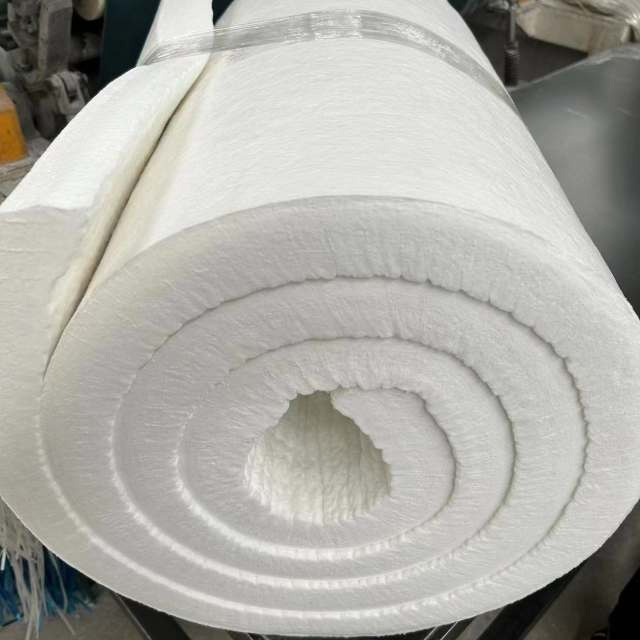

Ceramic fiber Plus Blanket

Ceramic Fiber Plus Blanket

Density: 96/128 kg/m³(6/8 lb/ft³)
Raw materials: Spuned Ceramic Fiber Bulk
Thickness: 10-50mm
Asbestos: 100% Non Asbestos

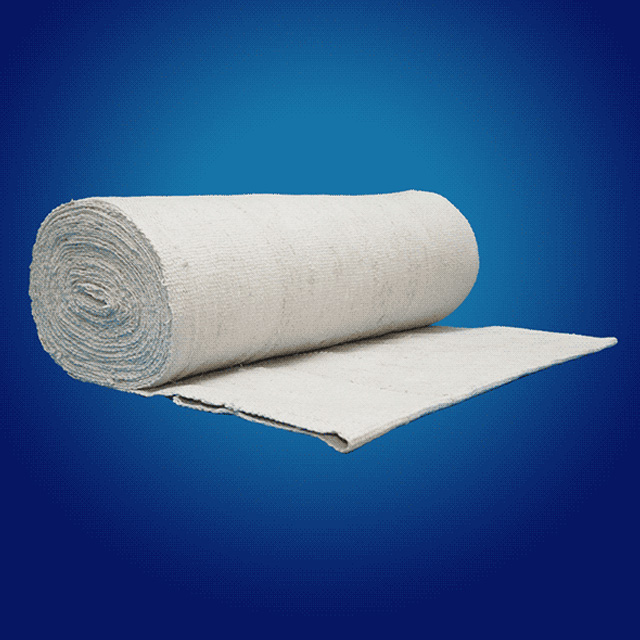

Ceramic Fiber Cloth

Ceramic Fiber Cloth

Density: 500±15 kg/m³
Raw materials: Ceramic Fiber Bulk
Thickness: 1.5-6mm
Asbestos: 100% Non Asbestos
Ceramic Fiber Tape

Ceramic Fiber Tape

Density: 500±15 kg/m³
Raw materials: Ceramic Fiber Bulk
Thickness: 1.6-6.4mm
Asbestos: 100% Non Asbestos

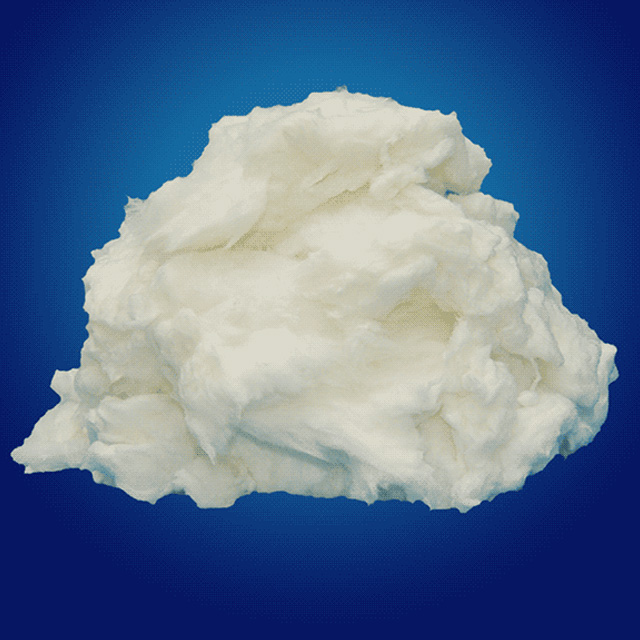

Ceramic Fiber Bulk

Ceramic Fiber Bulk

Fiber diameter: 3-5 μm
Raw materials: Flint clay
Asbestos: 100% Non Asbestos
Slag ball(Φ≥0.25 mm)%: ≤15

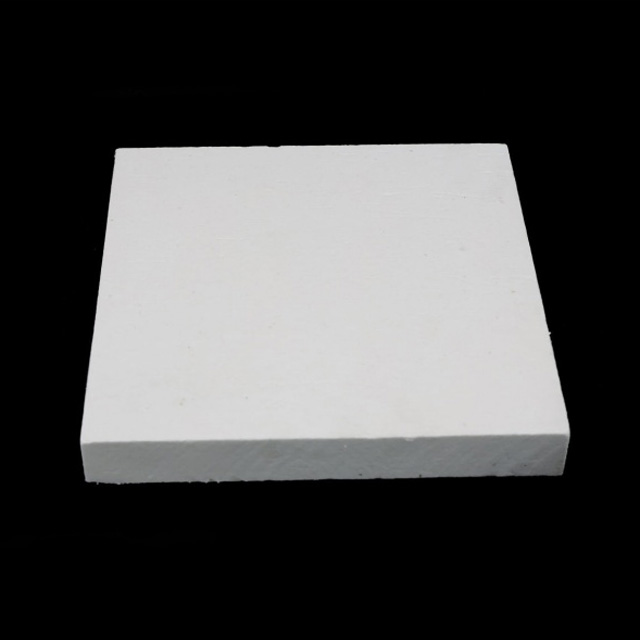

polycrystalline-mullite-fiberboard

1600 1700 1800 1900 Polycrystalline Mullite Fiberboard(Blanket)

Density: 260-320 kg/m³ (16-20 lb/ft³)
Raw materials: Aluminum Oxide, Silicon Dioxide
Thickness: 10mm-50 mm
Asbestos: 100% Non Asbestos

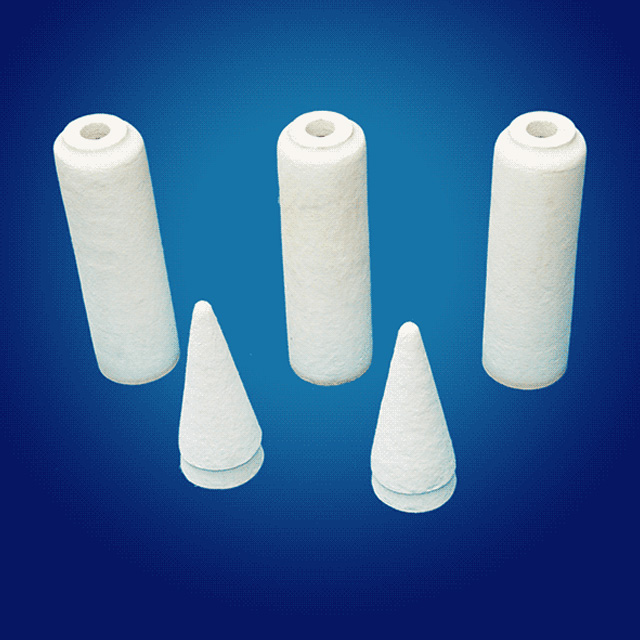

Ceramic Fiber Special Shaped

Ceramic Fiber Special Shaped

Raw materials: Spuned Ceramic Fiber Bulk
Asbestos: 100% Non Asbestos
Shape: Various kinds
Colour: White

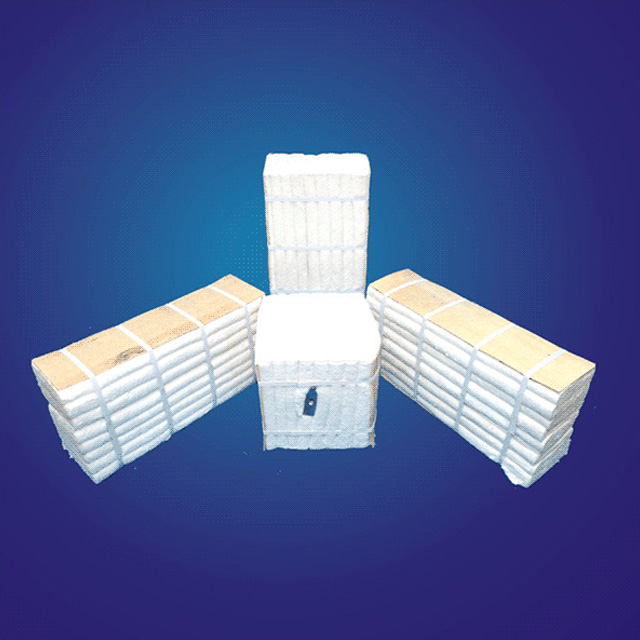

Ceramic Fiber Modules
