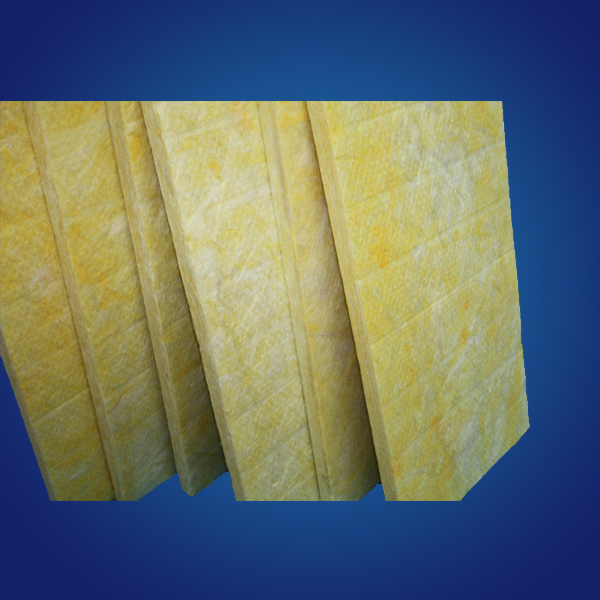

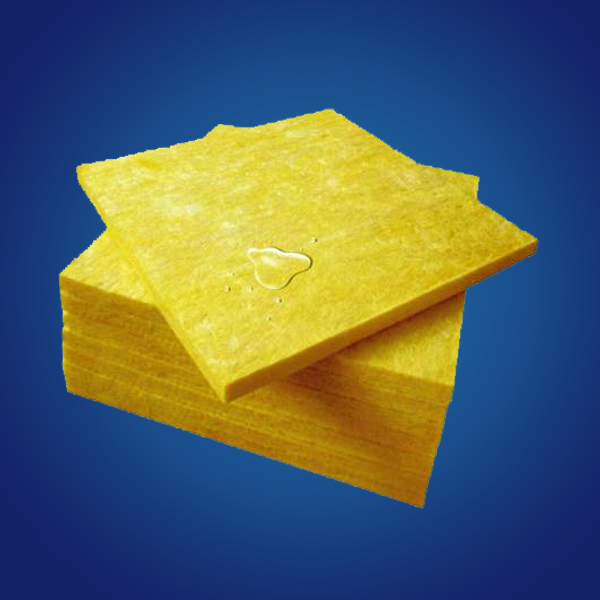

Glass Wool Board

Density: 12-48 kg/m³
Raw materials: Melten glass
Thickness: 25-150 mm
Asbestos: 100% Non Asbestos
Function: Thermal insulation, Sound absorption
Share With:
Introduction
Parameters
Application
Packaging
Related Products

Introduction

Glass wool is a category in glass fiber, is a kind of artificial inorganic fiber. Using quartz sand, limestone, dolomite and other natural ore as the main raw materials, with some soda ash, borax and other chemical raw materials into glass. In the molten state, with external force, blown into a flocculent fine fiber, fiber and fiber between the three-dimensional cross, intertwined with each other, showing a lot of small gaps. This gap can be seen as porosity. Therefore, glass wool can be regarded as porous materials, with good insulation, sound absorption performance.

Technical Parameters

Glass Wool Board Spec Supply Scope
Temperature(℃)
-120℃~400℃
-184℉~752℉
Dimension (m)
1.2*0.6, 1.2*1.2, 1.2*2.4

Thickness (mm)

25~100
Density (kg/m3)
24~96(1.5P~6P)

Item

Index Measured value Remarks

Bulk density(kg/m³)
24~100 24~100 GB/T 13350-2000

Average diameter of fibers(m)
< 8.0 4.0~6.0 GB/T 13350-2000

Moisture resistivity(%)
> 98 > 98 JISA9512-2000

Thermal conductivity (W/m.k)
0.036 0.036 GB/T 13350-2000

Incombustibility
Incombustible Up to standard (Grade A) GB/T 13350-2000

Sound absorption coefficient
  1.03product reverberation positioning 24kg/m3 2000HZ GB/J47-83

Max. working temperature(℃)
400 410 GB/T 13350-2000

The application of glass wool boards

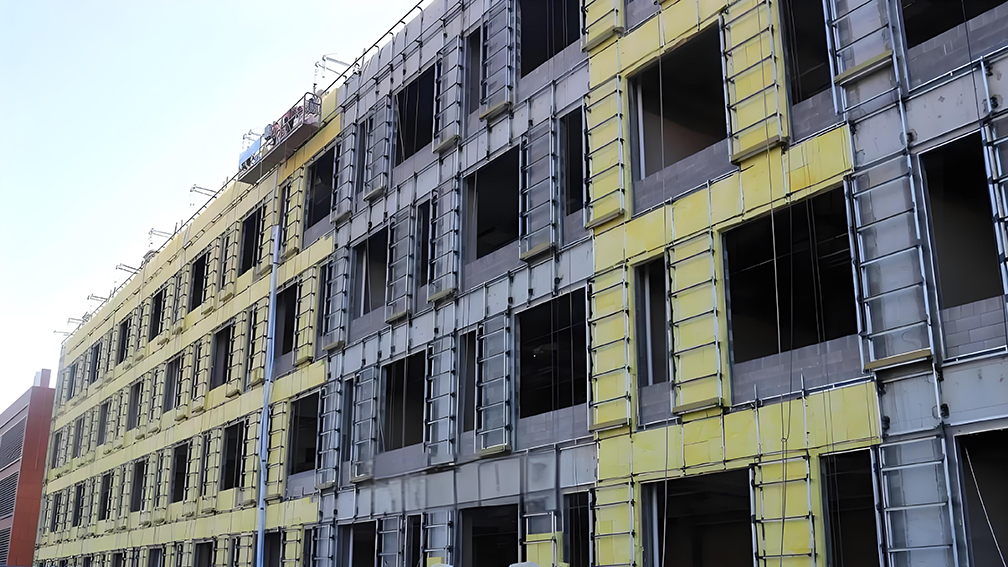

Roof, ceiling, and floor insulation in buildings, improving energy efficiency and reducing noise.
Roof, ceiling, and floor insulation in buildings, improving energy efficiency and reducing noise.

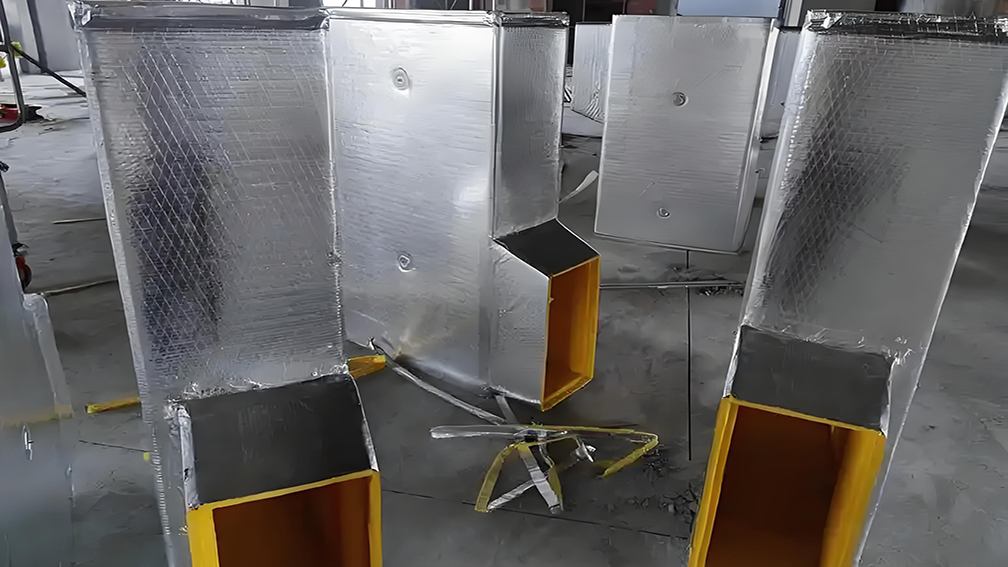

Applied to air ducts to maintain airflow temperature and prevent energy loss.
Applied to air ducts to maintain airflow temperature and prevent energy loss.
Installed in ceilings and roof spaces to enhance thermal efficiency and indoor comfort.
Installed in ceilings and roof spaces to enhance thermal efficiency and indoor comfort.

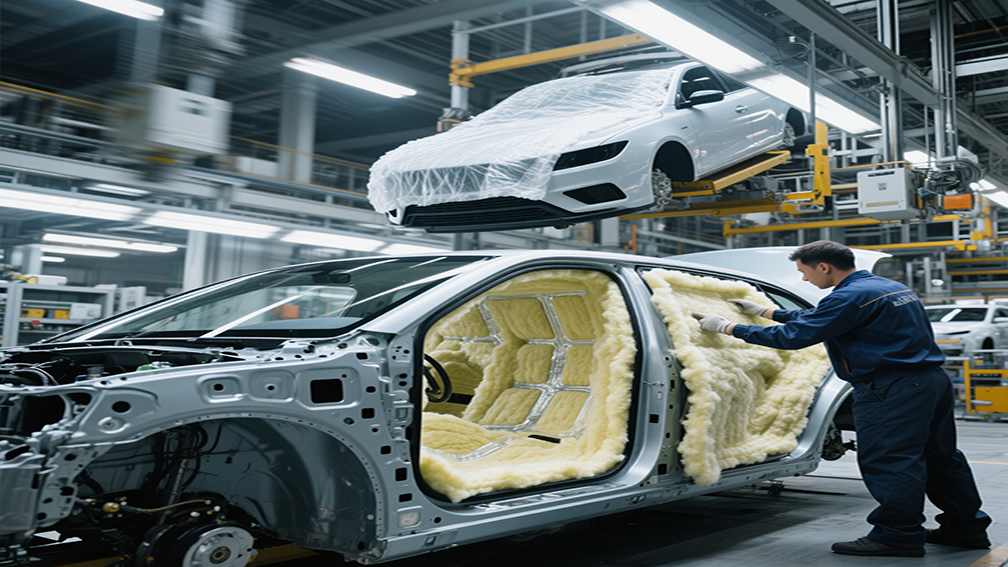

Installed in vehicles to insulate engines, reduce noise inside the cabin, and improve fuel efficiency.
Installed in vehicles to insulate engines, reduce noise inside the cabin, and improve fuel efficiency.

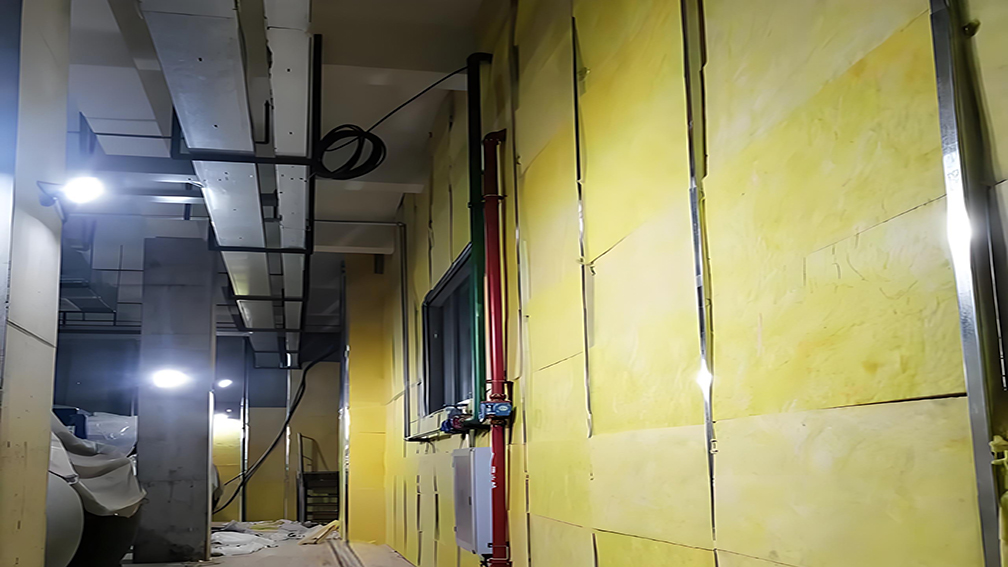

Used to reduce heat loss and noise transmission in residential and commercial walls.
Used to reduce heat loss and noise transmission in residential and commercial walls.

Packaging & Transportation
