In the energy-intensive refining industry, the efficient thermal insulation and durable protection of high-temperature steam pipelines are of vital importance. Facing the challenges of heat insulation and corrosion protection for steam pipelines operating at 500°C, Shell Refinery in the Netherlands has achieved remarkable energy savings and cost optimization through
calcium silicate insulation pipes, setting a classic case in the field of industrial thermal insulation.
1. Project Background: Dual Challenges of High Temperature and Corrosion

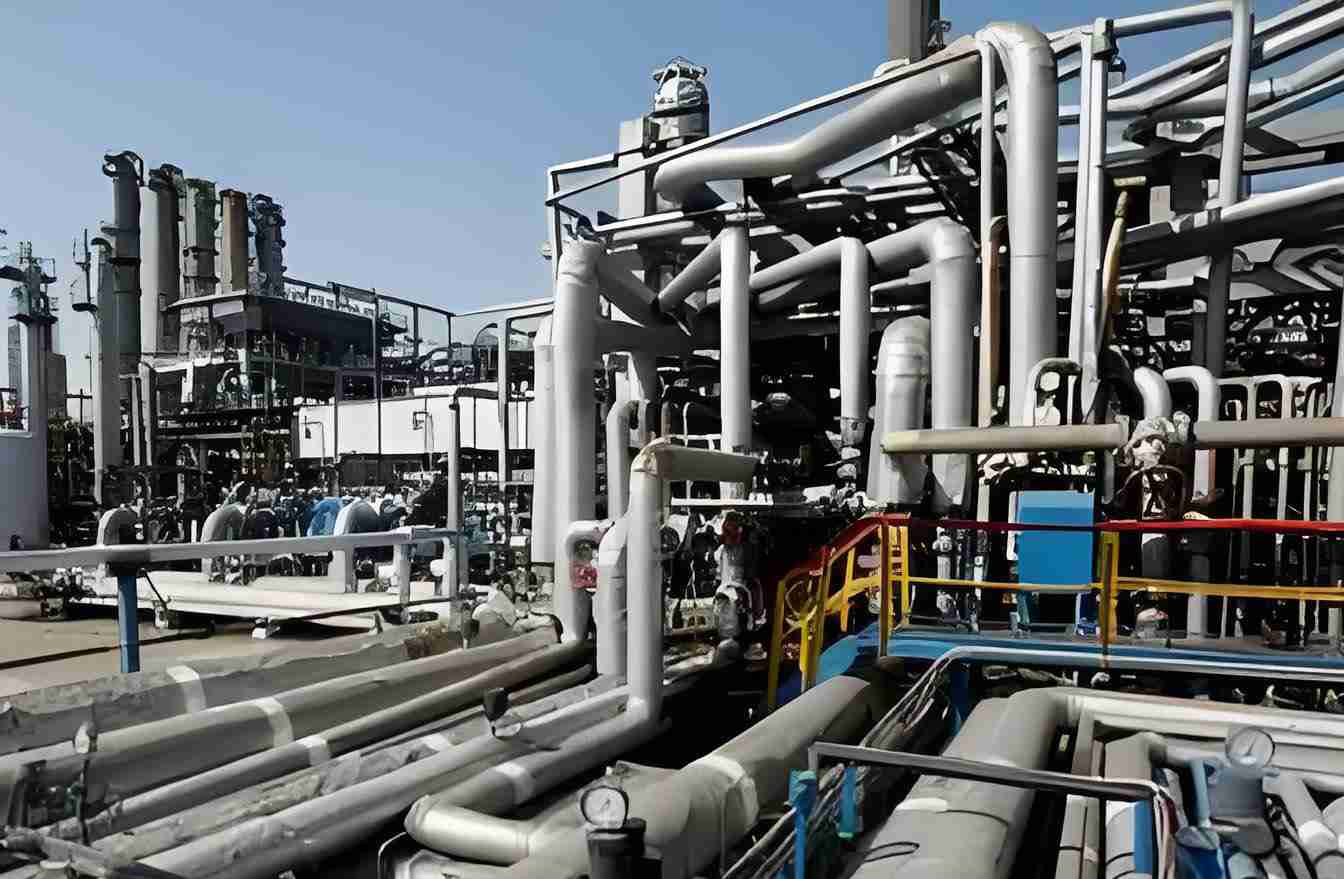

The 24-inch steam pipelines of Shell Refinery need to operate continuously at 932°F (500°C) while being long-term exposed to a corrosive environment containing sulfur compounds. Traditional mineral wool insulation materials struggled to meet the dual requirements of
high-efficiency thermal insulation and
chemical corrosion resistance: their higher thermal conductivity led to significant heat loss, and under the erosion of sulfur compounds, their service life was usually less than 3 years. Frequent replacements not only increased maintenance costs but also affected production continuity.
2. Solution: Customized Application of Calcium Silicate Insulation Pipe
The refinery finally selected customized

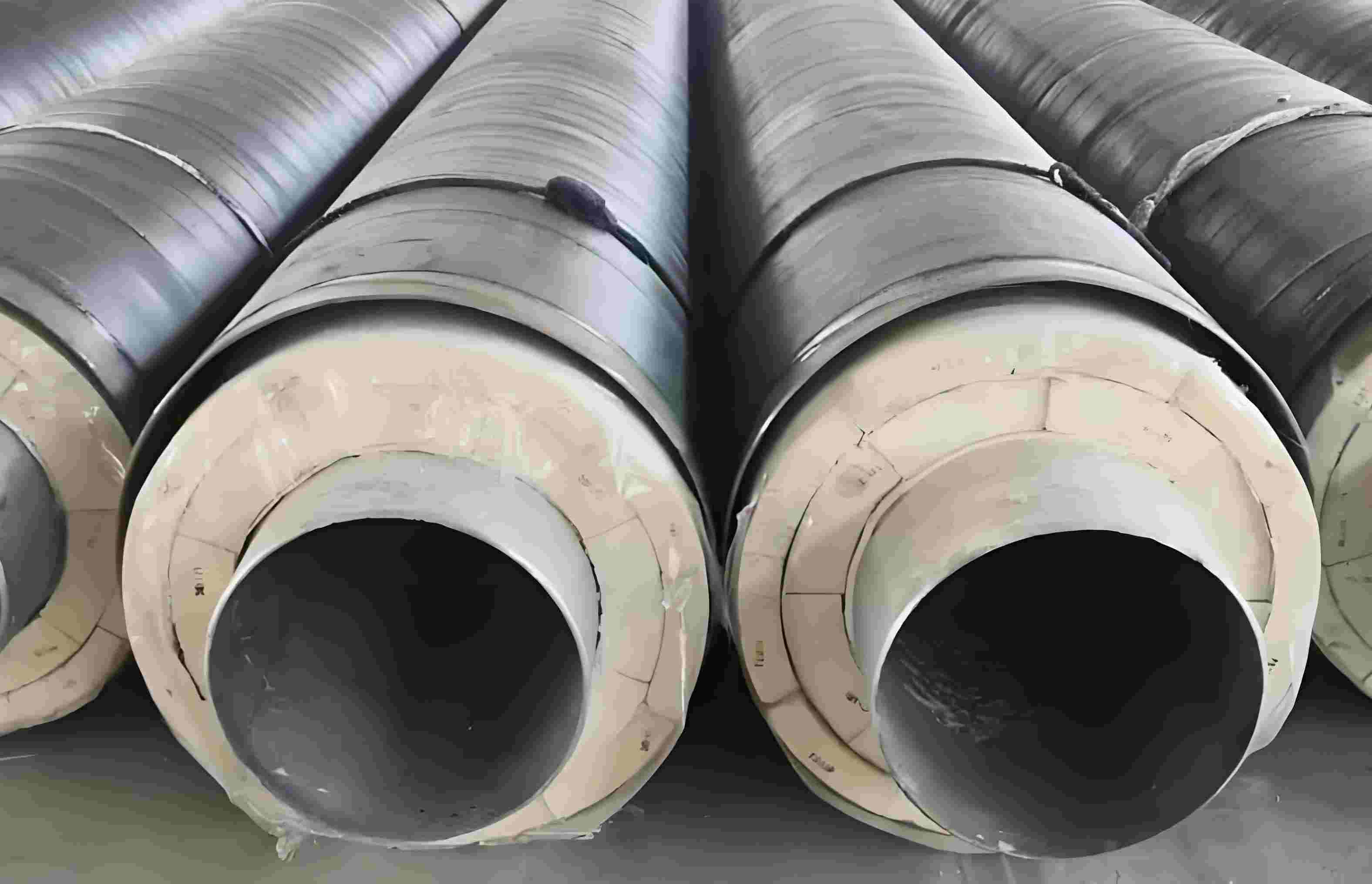

high-temperature resistant calcium silicate insulation pipes, which are specially designed for high-temperature industrial scenarios. The core parameters are as follows:
- Thermal Insulation Performance: The thermal conductivity is as low as 0.056 W/m·K, 20% lower than that of mineral wool materials, effectively reducing heat transfer to the outside.
- Temperature Resistance: It can withstand high temperatures of 650°C for a long time and maintain stable performance under the working condition of 500°C.
- Corrosion Resistance: The chemical stability is enhanced through a special formula, which can resist the long-term erosion of sulfur compounds.
- Installation Method: A segmented winding design is adopted, combined with high-temperature resistant adhesives and stainless steel strapping bands, to ensure that the insulation layer fits closely to the pipeline surface and avoid thermal bridge effects.
3. Practical Effects: Energy Saving, Durability and Cost Optimization
- Significant Reduction in Energy Consumption: After the calcium silicate insulation pipes were put into use, the heat loss of the steam pipelines was greatly reduced, the overall energy consumption of the refinery was reduced by 18%, and the annual fuel cost savings exceeded one million euros.
- Ultra-long Service Life: With excellent corrosion resistance and high-temperature resistance, the insulation pipes do not need to be replaced within 8 years, which extends the service life by nearly 3 times compared with traditional materials, and significantly reduces the maintenance frequency and downtime.
- Performance Comparison Advantages: Compared with mineral wool insulation materials, calcium silicate insulation pipes fully outperform in terms of thermal conductivity, chemical stability and mechanical strength, making them an ideal choice for high-temperature corrosive environments.
4. Industry Insights: The Core Value of Calcium Silicate Insulation Pipe
The successful application in Shell Refinery proves that calcium silicate insulation pipes can not only meet the insulation needs under extreme working conditions, but also help enterprises achieve the dual goals of
energy efficiency improvement and
cost control through long-term stable performance. Its characteristics of low thermal conductivity, high temperature resistance and corrosion resistance make it particularly suitable for industries with strict material performance requirements such as petrochemical and power energy, providing a reliable solution for industrial pipeline insulation.
Choosing calcium silicate insulation pipes means choosing an efficient, durable and sustainable industrial insulation solution. Whether for high-temperature steam pipelines or other equipment that needs to withstand harsh environments, calcium silicate materials will become a key factor in enhancing the competitiveness of enterprises.
