Ceramic fiber cloth empowers electrolytic cell construction, Rosewool Insulation Refractory Co.,Ltd. safeguards efficient production

Release Time: 2026-03-09

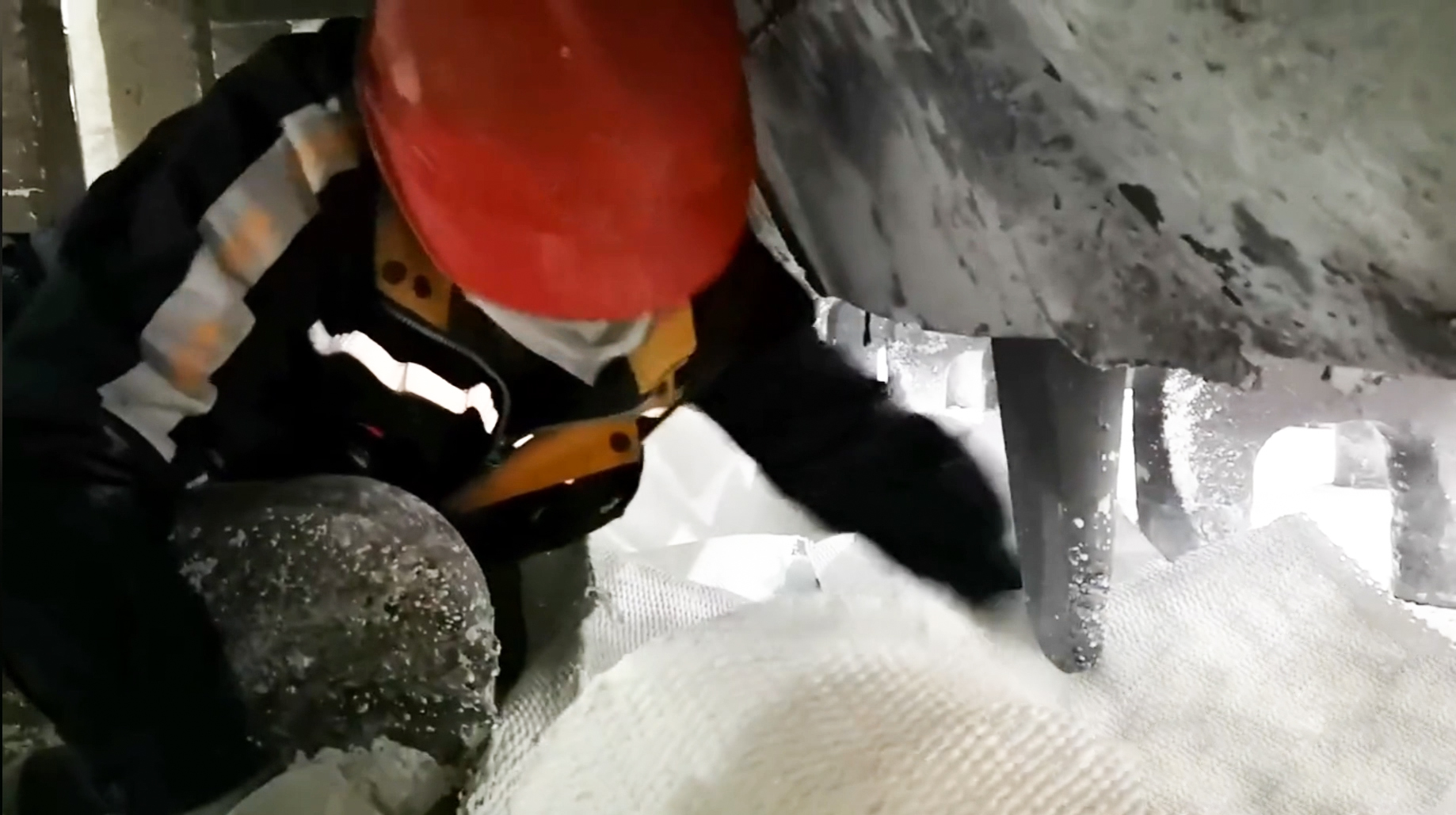

As the production core of non-ferrous aluminum plants, electrolytic cells are subjected to high temperature and strong corrosion conditions for a long time. The sealing and insulation effect directly determines production efficiency and equipment life, and ceramic fiber cloth is the key to unlocking this problem. At the construction site, ceramic fiber cloth is tightly adhered to the electrolytic cell body, anode guide rod, and gaps, flexibly adapting to various irregular structures, making construction convenient and efficient, and building a strong "thermal insulation and protection barrier" for the electrolytic cell.

Its core advantages of high temperature resistance and low thermal conductivity can effectively block high temperature conduction inside the electrolytic cell, reduce heat loss by 3% -8%, and minimize energy consumption. At the same time, it has excellent sealing performance, which can prevent smoke from escaping and aluminum liquid leakage, safeguarding production safety. The application of ceramic fiber cloth is the key to extending the life of the electrolytic cell lining and stabilizing the current effect, which directly affects the production continuity and economic benefits of aluminum plants, and has become an indispensable core insulation material in electrolytic cell construction.

Choose high-quality ceramic fiber cloth, preferably Rosewool Insulation Refractory Co.,Ltd. The company has been deeply involved in the industry for more than 40 years, producing ceramic fiber cloth with excellent material selection and exquisite craftsmanship, low slag ball content, and good toughness. It is suitable for the harsh working conditions of electrolytic cells and has been tested to significantly reduce the temperature of the outer wall of the cell, with outstanding energy-saving effects.

Technical Parameters

Ceramic Fiber Cloth:

Temperature(°C)	1260
Product Name	Glass-fiber Reinforced Ceramic Fiber Cloth with wire	Stainless-steel Reinforced Ceramic Fiber Cloth with wire
Basic Material	Ceramic Fiber/Glass fiber Reinforcement	Ceramic Fiber/Staineless-steel Reinforcement
Density(kg/m3)	500
Long-term Operation Temp(°C)	650	1050
Water Content(%)	≤2
Organic Content(%)	≤15
Heat Conductivity(W/m° K)	500℃: 0.101
	650℃: 0.105
	1000℃: 0.176
Packing	Woven Bag
Thickness	1.5-6mm
Width	300-1500mm
Length	10-30m
Diameter of Fiber	3-5um

We not only focus on ceramic fiber cloth, but also have a full range of ceramic fiber products and insulation solutions, covering ceramic fiber boards, ropes, paper, blankets, etc., suitable for the needs of aluminum plants, power plants, cement plants and other fields. The product has passed strict certification and is exported to multiple countries and regions at home and abroad, with rich project implementation experience. Choosing Rosewool Insulation Refractory Co.,Ltd. not only provides high-quality products, but also offers full chain services such as customized selection and construction guidance. We sincerely invite you to join hands and build an efficient and energy-saving production defense line.
