Aluminum foil rock wool pipe shell model and specifications?

Release Time: 2025-12-22
Share:
Aluminum foil rock wool pipe shell model and specifications? rock wool pipe shell is a commonly used material for pipeline insulation and heat preservation. The specifications and models are mainly divided into three core dimensions: density, pipe diameter (adapted to the outer diameter of the pipeline), thickness, and length. Rosewool Insulation Refractory Co.,Ltd's rock wool pipe shell also supports customization to adapt to different temperature and pressure pipeline conditions. Aluminum foil rock wool pipe shell is made by adding aluminum foil to the rock wool pipe shell, which is divided into single-sided aluminum foil and double-sided aluminum foil;

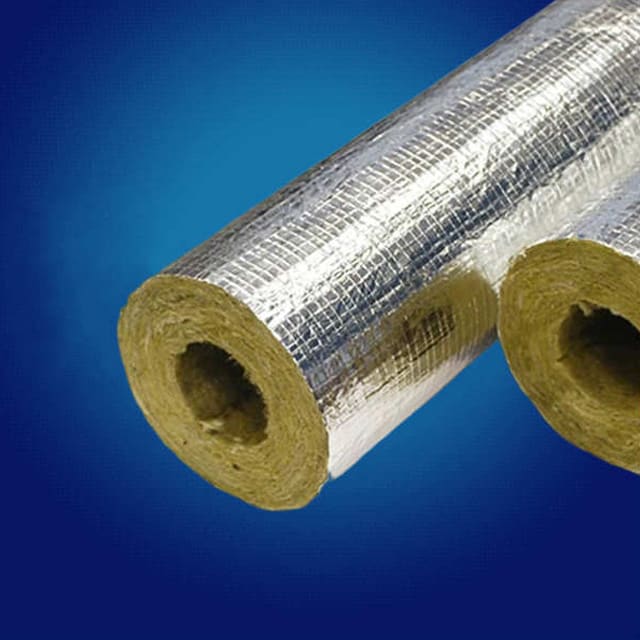

Aluminum foil rock wool pipe shell is an insulation material composed of a composite aluminum foil reflective layer on the outer wall of ordinary rock wool pipe shell. It combines the thermal insulation properties of rock wool with the moisture-proof and reflective heat radiation functions of aluminum foil. The specifications and models of Rosewool Insulation Refractory Co.,Ltd's aluminum foil rock wool pipe shell are divided into four core dimensions: suitable pipe diameter, insulation thickness, length, and aluminum foil parameters;

Technical Parameters

Performance Indicators
Shot content ( Particle diameter ≥0.25mm) ≤ 12.0 %
The average diameter of fiber ≤7.0 μm
Density Tolerance ± 15%
Thermal Conductivity ( average temperature 70℃±52℃),W/(m/K) ≤ 0.044
Thermal load contraction temperature (more than 60 kg/m³) ≤ 600 ℃
Moisture ≤0.5%
Combustion performance Not burning (Class A)
Organic content ≤ 4.0%


Rosewool Insulation Refractory Co.,Ltd  Customized Services
  • Large diameter profiled aluminum foil pipe shell: it is suitable for large diameter pipes above φ 325 (such as discharge pipe of chemical storage tank and main steam pipe of power plant). The aluminum foil layer can be thickened to 0.12mm as required to enhance the anti-aging ability.
  • High density aluminum foil tube shell: density ≥ 120kg/m ³, excellent compressive and flexural performance, suitable for overhead pipelines and industrial equipment pipelines with frequent vibration.
  • Flame retardant aluminum foil composite layer: Flame retardant adhesive is added between aluminum foil and rock wool, which does not release toxic gases at high temperatures and is suitable for building HVAC pipelines with strict fire protection requirements.
